Product name
|

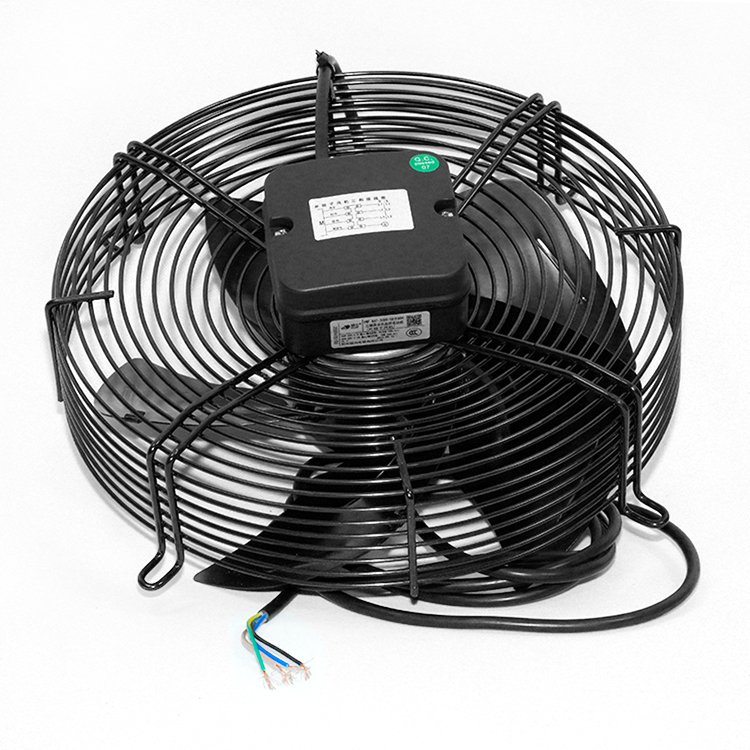

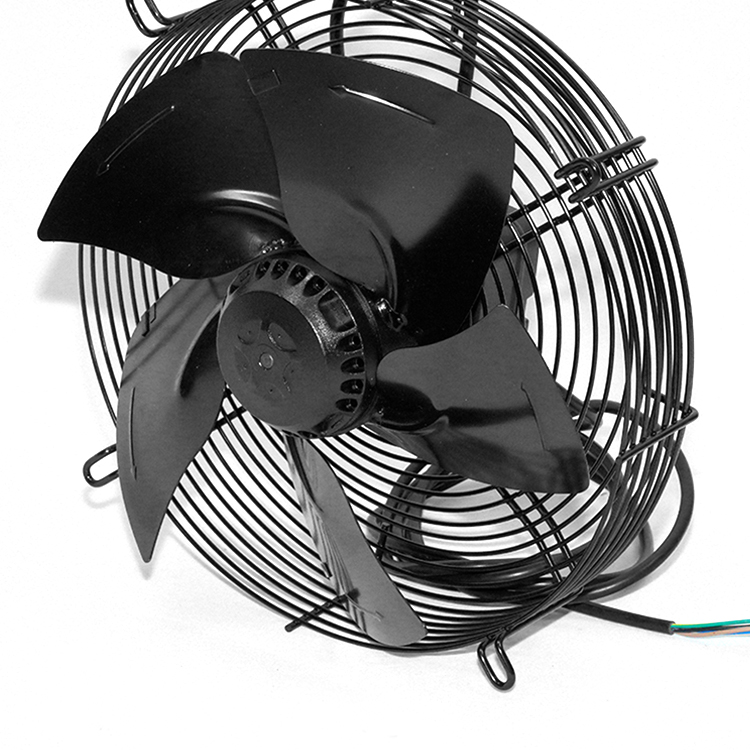

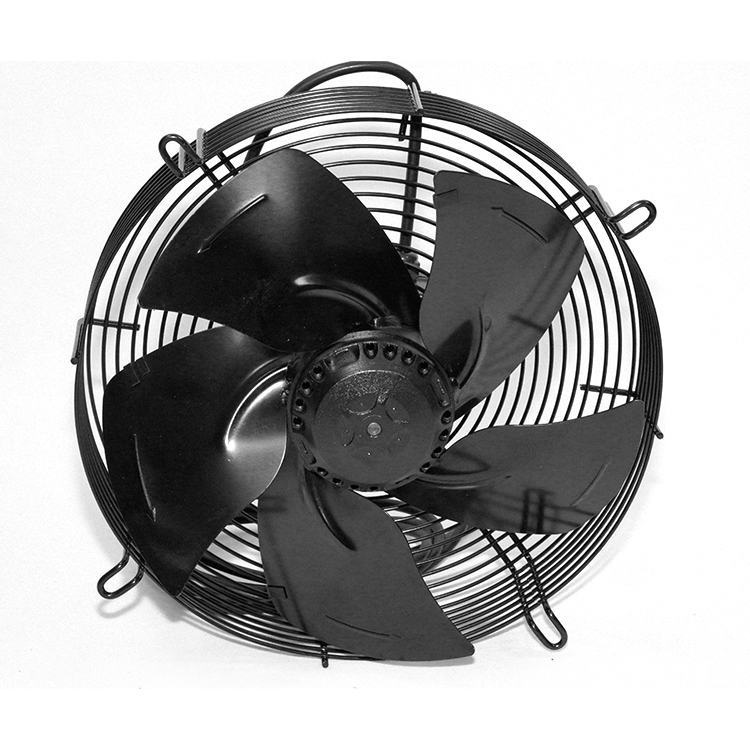

Cooler Fan |
| Model | A4T300S-5DIII-A04 |
| Material | Stainless steel |
| Size | 44x44x17cm |
| Power | AC380V |
| Usage | Air Condition Cooling Fan |
| Voltage | Conventional products: three-phase AC380V/s0Hz, single-phase capacitor motor and cover pole motor AC220V/sOHz, special voltage And frequency, as well as non-generic products, when ordering should Special Note |
| Wind Direction | The conventional product is the suction type: air flows from the motor to the net cover. When reverse is required, the customer should explain the blowing type. |
| Performance Parameters | For a 50Hz fan with the same blade diameter and the same number of poles, whether single-phase or three-phase, the motor shaft power is the same, as shown in the manual. The attached parameter table is measured when the inlet and outlet of the fan are at zero static pressure. The fan noise is the measured value at the outlet of the fan of 1 meter. |
| Air Volume Curve | According to GB/T1236(idt ISO 5801), C-type air duct intake test device, conical inlet nozzle, fan with net cover test. The pressure marked is the inlet static pressure. |
| Operating Temperature | The temperature rise of the motor is measured when the fan is under zero static pressure. When leaving the factory, the temperature rise of the fan is generally controlled below 50K, and the temperature rise of the air cooler is controlled at Below 70K. When the motor insulation level is B. |
