Product Name
|

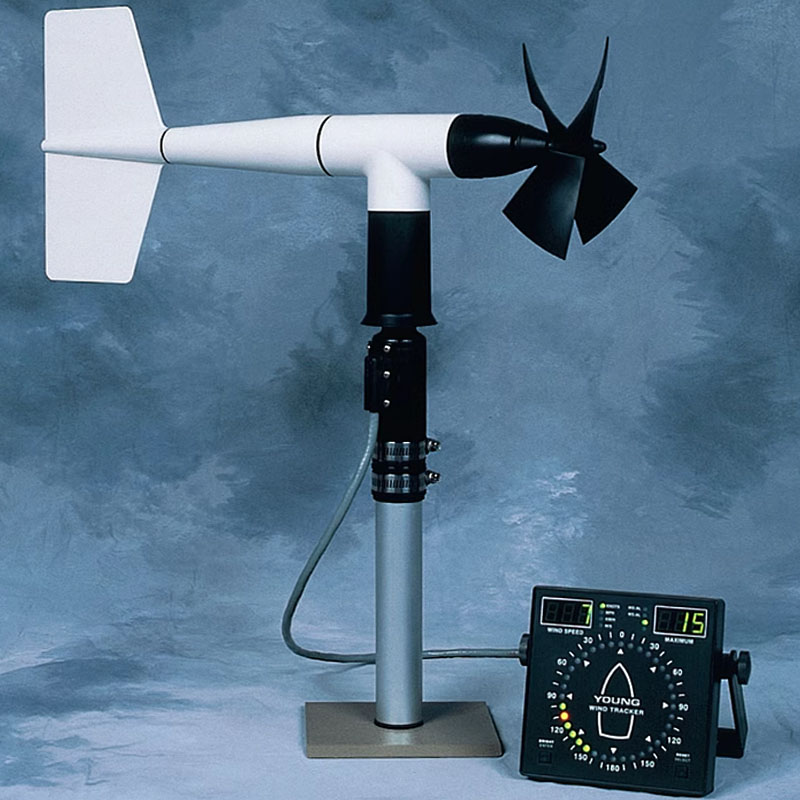

Marine Wind Sensor
|
|
Model
|
05106
|
|
Material
|
U.V stabilized plastic materials, ceramic precision bearings
|
|
Operating Temp
|
-50℃~50℃
|
|
Advantages
|
Rugged, corrosion resistant, high precision, light weight
|
|
Application
|
The Wind Monitor-MA measures horizontal wind speed and
direction. |
|
WIND SPEED SPECIFICATION SUMMARY:
|
WIND DIRECTION (AZIMUTH) SPECIFICATION SUMMARY:
|
|
Range: 0 to 100 m/s (224 mph)
|
Range: 360° mechanical, 355° electrical (5° open)
|
|
Sensor: 18 cm diameter 4-blade helicoid propeller molded of polypropylene
|
Sensor: Balanced vane, 38 cm (15 in) turning radius.
|
|
Pitch: 29.4 cm air passage per revolution
|
Damping Ratio: 0.25
|
|
Distance: Constant 2.7 m (8.9 ft.) for 63% recovery
|
Delay Distance: 1.3 m (4.3 ft) for 50% recovery
|
|
Threshold Sensitivity: 1.1 m/s (2.4 mph)
|
Threshold Sensitivity: 1.1 m/s (2.4 mph) at 10° displacement
|
|
Transducer: Centrally mounted stationary coil, 2K 0hm nominal DC resistance
|
Damped Natural Wavelength: 7.4 m (24.3 ft)
|
|
Transducer Output: AC sine wave signal induced by rotating magnet on propeller shaft. 80 mV p-p at 100 rpm. 8.0 V p-p at 10,000
rpm. |
Undamped Natural Wavelength: 7.2 m (23.6 ft)
|
|
Output Frequency: 3 cycles per propeller revolution(0.098 m/s per Hz)
|
Transducer: Precision conductive plastic potentiometer, 10K ohm resistance (±20%), 0.25% linearity, life expectancy 50 million revolutions, rated 1 watt at 40° C, 0 watts at 125° C
|
|
/
|
Transducer Excitation Requirement: Regulated DC voltage, 15 VDC max
|
|
/
|
Transducer Output: Analog DC voltage proportional to azimuth angle with regulated excitation voltage applied across potentiometer.
|
