Top Mount Self-Powered Dial Liquid Level Gauge HB-SPCG-150S-C Marine Grey Water Tank Level Indicator

Technical Specifications

Dial Diameter: 150mm

Mounting Type: Top mount (S = Top installation)

Tank Depth Customized: Max 3908mm (customizable)

Medium Specific Gravity: S.G=1.0 (grey water/fresh water, S.G adjustable for oil)

Measuring Range: 0~14m liquid column; pressure scale 0~0.196MPa

Warning Mark: Custom high-level red warning line (10.76m standard)

Capillary Tube: Custom length, anti-extrusion, anti-kink sealed pressure transmission hose

Sensing Diaphragm Box: Stainless steel pressure sensing capsule, corrosion-resistant

Working Principle: Hydrostatic pressure mechanical transmission

Calibration Date: Factory calibrated, with inspection certificate

Certificate: Factory quality certificate, meets marine standard

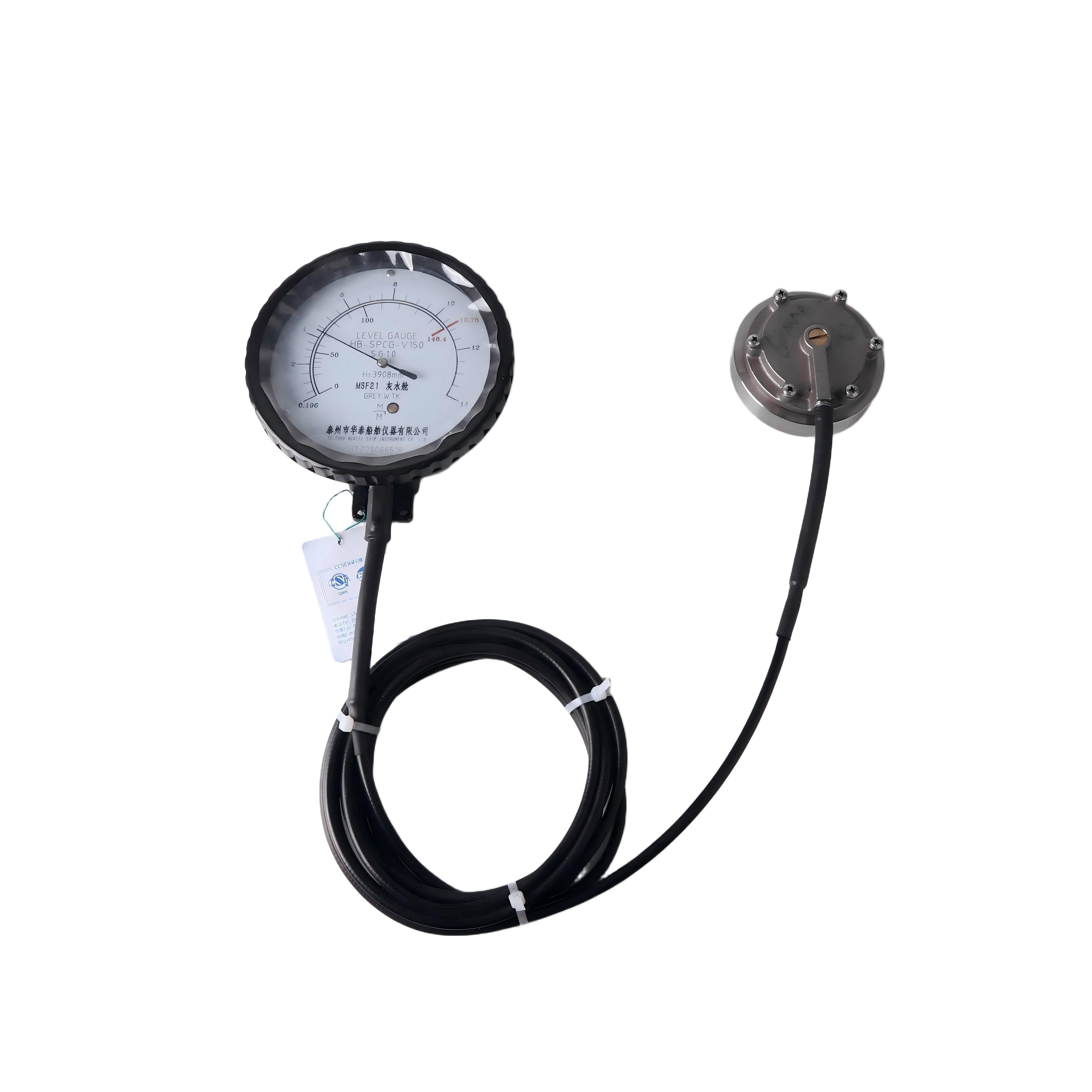

Product Structure Composition

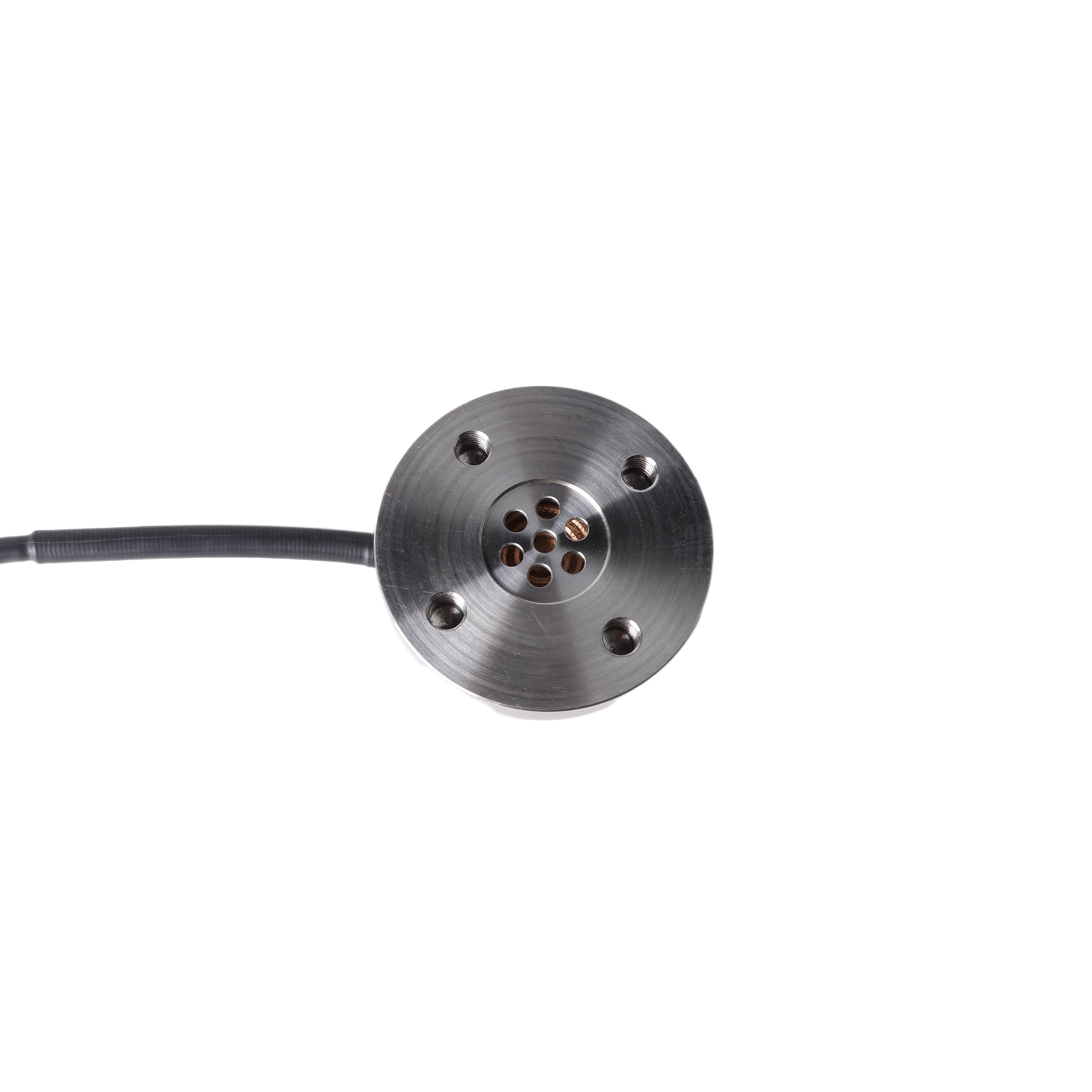

1. Top-mounted stainless steel sensing capsule: Install on tank top to collect liquid static pressure
2. Sealed capillary pressure transfer hose: Transmit pressure signal remotely
3. 150mm large-size dial indicator: On-site real-time level display

Main Advantages
1. Self-powered & Explosion-proof
No power supply, no electronic components, intrinsically safe, suitable for flammable liquid tanks (fuel oil, lube oil) and closed sewage tanks.
2. Top Mount Installation
Only need opening on tank top, no side wall drilling, perfect for underground, fully enclosed marine tanks.
3. Dual Scale Clear Reading
Integrated liquid level meter, pressure gauge & tank volume scale; custom high-water warning red line for easy operator observation.
4. Marine Heavy-Duty Structure
Shock-resistant, temperature-resistant, anti-vibration design, stable performance under ship sway & bump conditions.
5. Fully Customizable
Adjustable tank depth, medium specific gravity, capillary length, dial scale & warning line according to client tank parameters.
6. Low Maintenance
Zero electronic failure risk, long service life, simple regular inspection only.

Working Principle

1. Hydrostatic pressure generation: The liquid height inside the tank generates static pressure, acting vertically on the stainless steel sensing diaphragm box installed on the tank top.                                                Formula: P=ρgh                                                                                                                                      P=static pressure, ρ=medium density, g=gravity acceleration, h=liquid level height.
2. Pressure transmission: The sealed capillary hose is fully filled with incompressible pressure-transfer liquid, transmitting pressure losslessly from the diaphragm box to the dial gauge.
3. Mechanical display: The internal Bourdon tube inside the dial deforms under transmitted pressure. The deformation is amplified by linkage gear mechanism to drive the pointer.

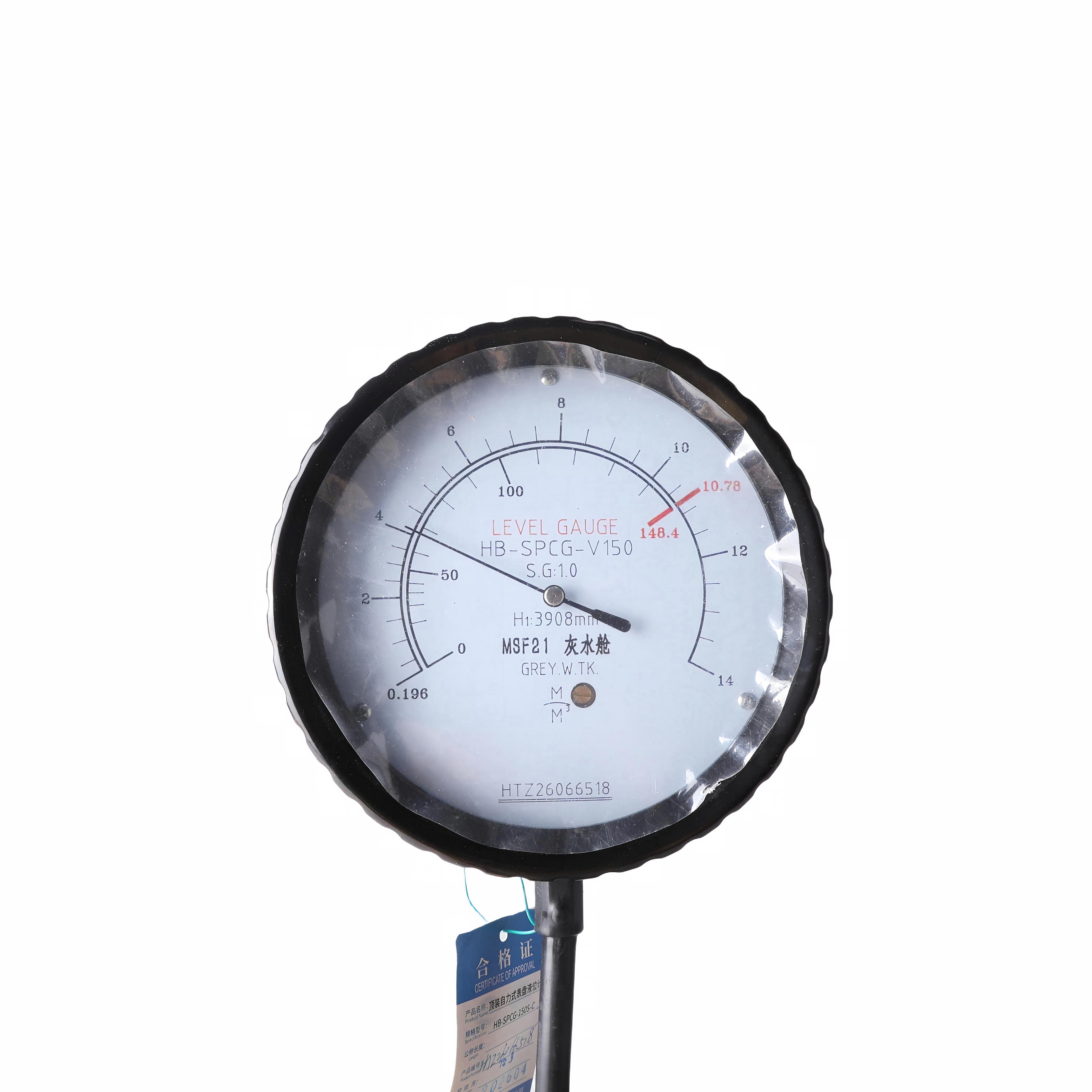

4. Dual-scale reading: The dial is pre-calibrated with liquid level (meter) & pressure (MPa) scales, with tank volume reading and high-level alarm line for direct on-site reading.
5. Self-powered advantage: Pure mechanical structure without any electrical parts, driven only by liquid static pressure, no electricity needed.

Application Scenarios

Marine Industry

Grey water tank, black water sewage tank, fresh water tank, domestic water tank, diesel oil tank, lube oil tank, ballast auxiliary tank of cargo ships, yachts, engineering vessels, work boats.

Land Industry

Underground water storage tank, atmospheric chemical storage tank, fuel storage tank, factory sewage tank.

Installation & Maintenance Guide

Installation Notes

1. Fix the sensing diaphragm box horizontally at the highest point of tank top to ensure full contact with liquid static pressure.

2. Avoid sharp bending or squeezing capillary tube; bending radius ≥10cm to prevent internal pressure liquid blockage.

3. Mount dial gauge on walkway or pump room wall for convenient daily inspection.
